Kitchen (KT)

Electricity

Codification :

Example : G2-11-KT-SO2

• G2 : Ground Central 2
• -11 : DIN rail circuit (Rail 1, Position 1)
• KT : Kitchen
• SO2 : Socket 2

DIN Rail Numbering:

• Rail 1 (Phase 1): G2-11 to G2-19
• Rail 2 (Phase 2): G2-21 to G2-29
• Rail 3 (Phase 3): G2-31 to G2-39

Note: Kitchen circuits have been consolidated onto DIN rails. Legacy porcelain fuse codes (G2B-x, G2C-x) are obsolete.

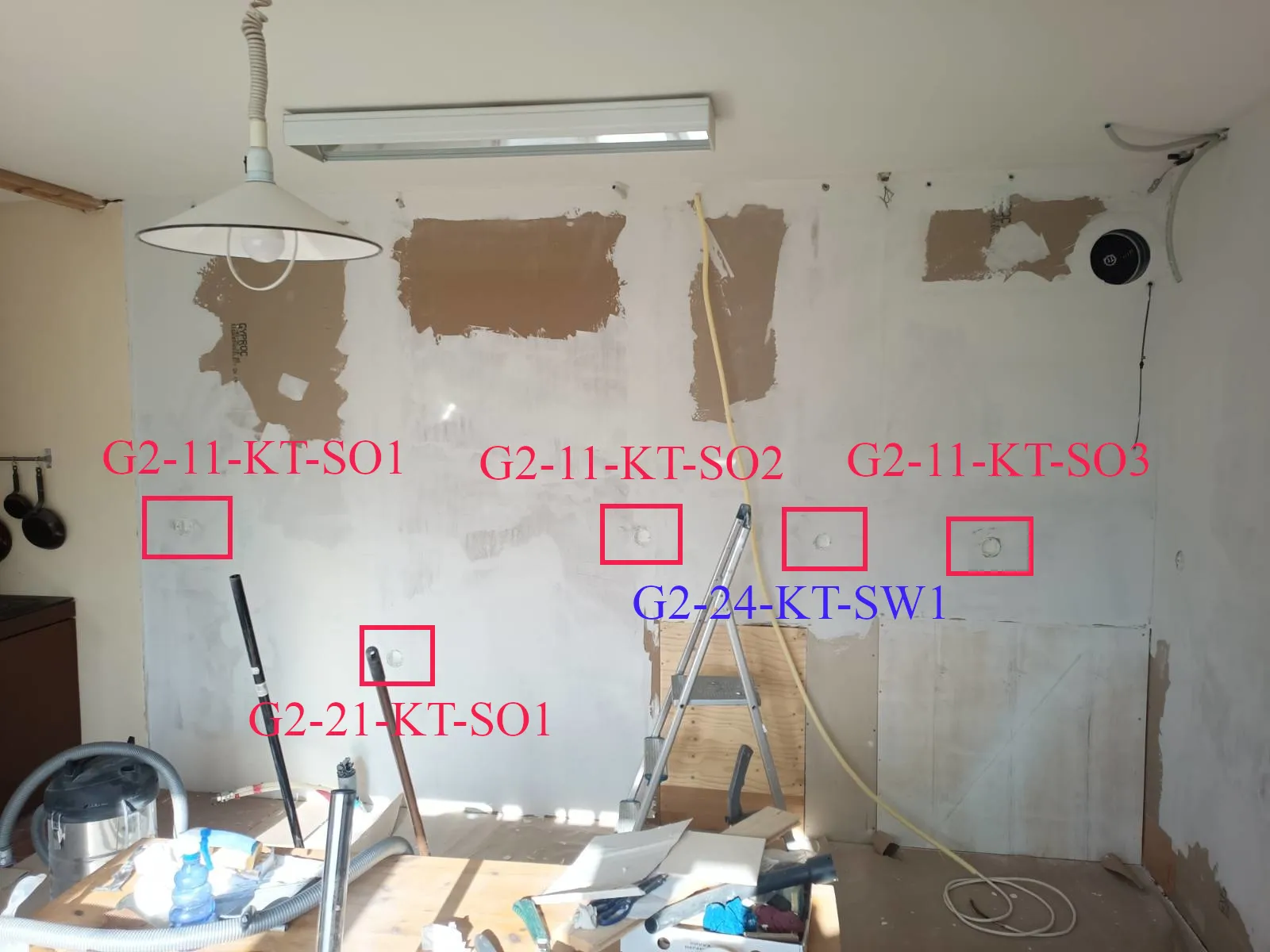

Wall 1

Code	Type	Note
G2-11-KT-SO1	Socket	double socket
G2-11-KT-SO2	Socket	double socket
G2-11-KT-SO3	Socket	double socket
G2-21-KT-SO1	Socket	double socket
G2-24-KT-LW1	Switch (push button)	-
GM1-KT-FAN1	12v 200mm fan	heat mover fan, powered by kitchen manifold cabinet (GM1)

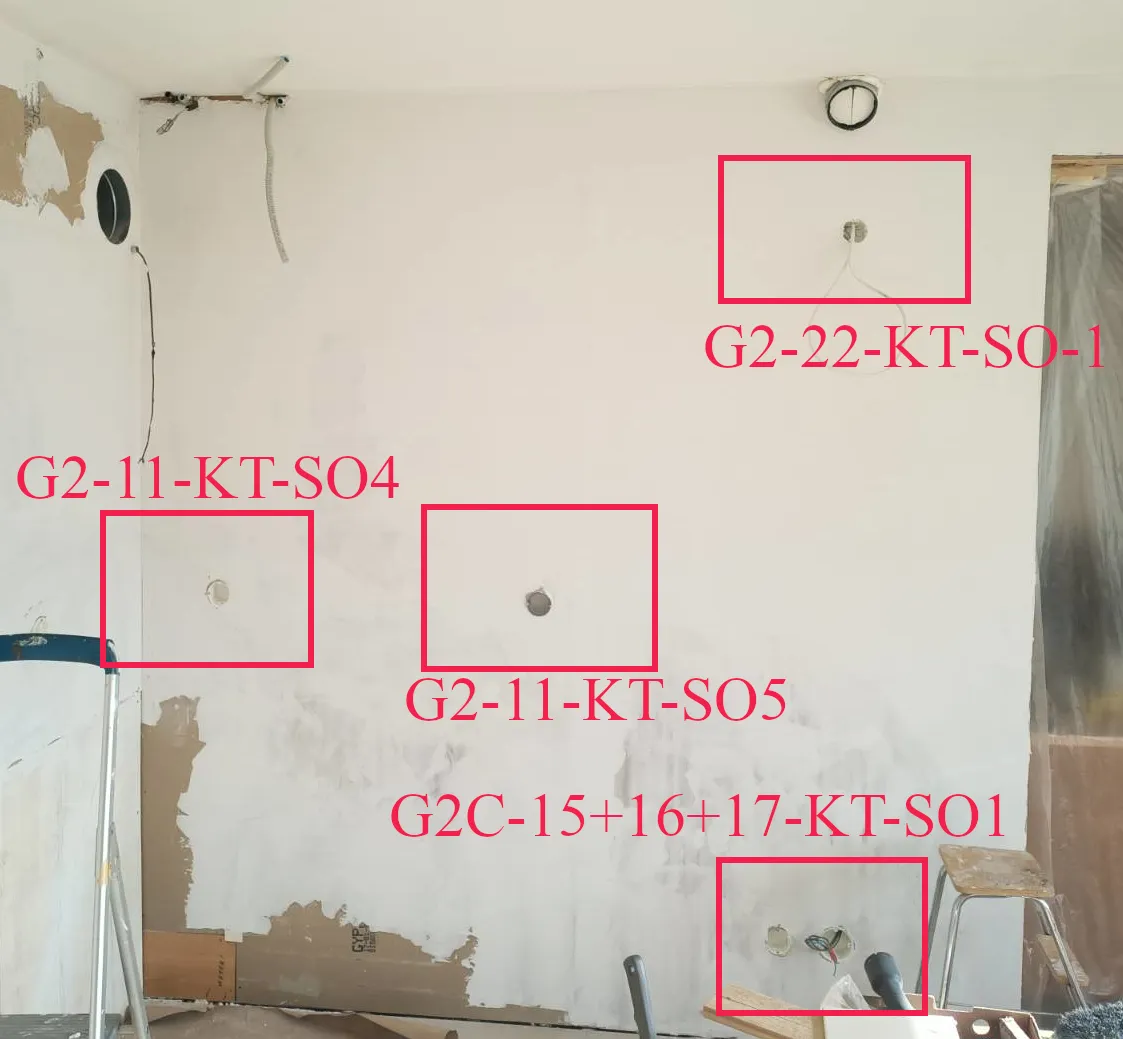

Wall 2

Code	Type	Note
G2-11-KT-SO4	Socket	double socket
G2-11-KT-SO5	Socket	double socket
G2-22-KT-SO1	Socket	shared with island
G2C-15.16.17-KT-SO8	3 phase Socket	also a spare single phase socket on the left for separate oven plug

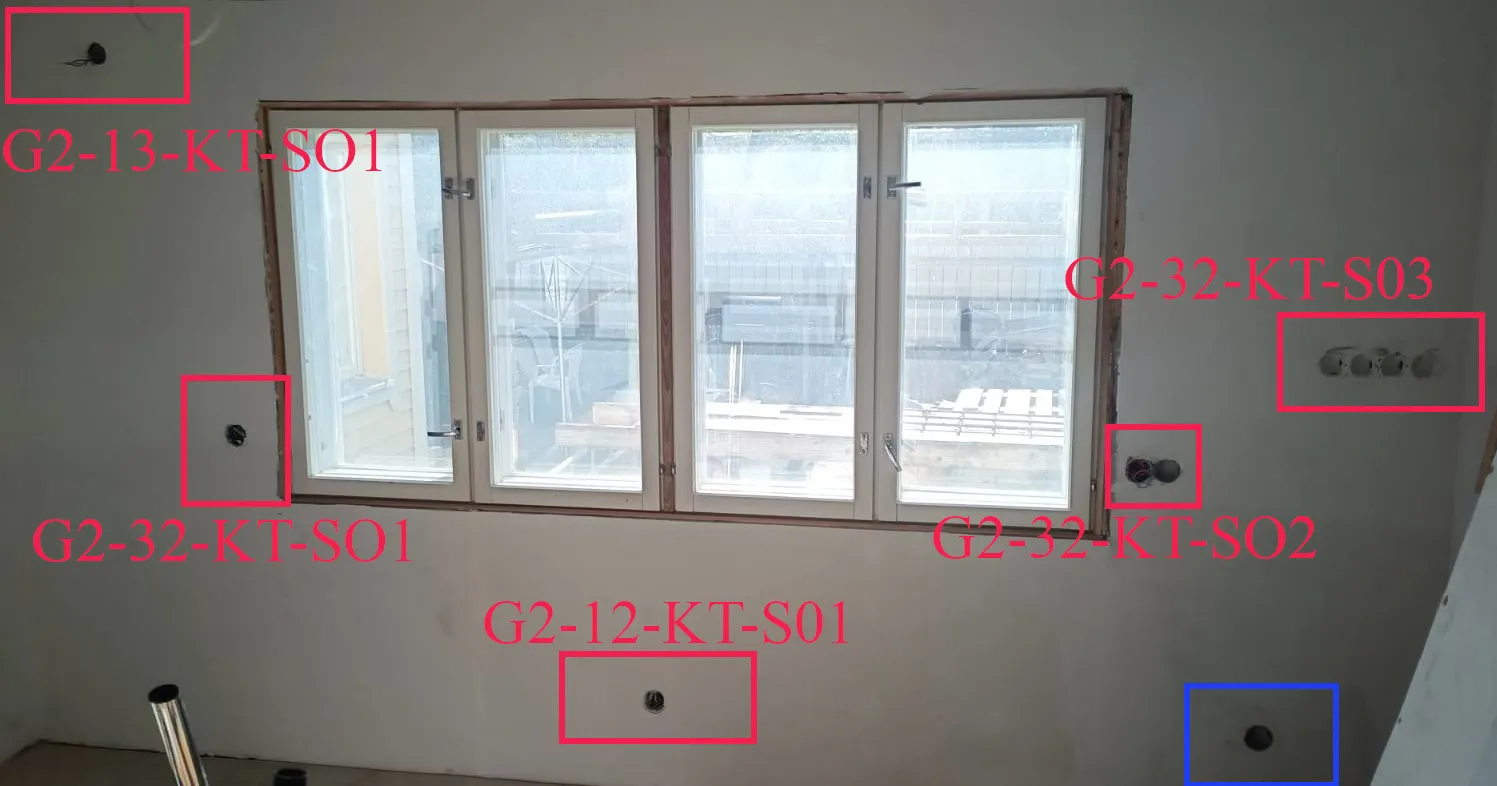

Wall 3

G2-13: NEW fridge circuit on separate DIN rail breaker (Rail 1, Phase 1)

Code	Type	Note
G2-13-KT-SO1	Socket	double socket - NEW fridge circuit
G2-32-KT-SO1	Socket	one double socket, left of window
G2-32-KT-SO2	Socket	2 double sockets, right of window
G2-32-KT-SO3	Socket	4 single sockets
G2-12-KT-SO1	Socket	protruding socket + smart relay

Light switching

3 main light circuits :

• ceiling led spots (probably 8)
• island task lightning (suspension, probably 1)
• countertop task lightning (led lights under upper cabinets)

And one secondary mainly for auto power on at night

5 switch locations :

• 2 triples, one per entry
• 3 simple : one for the island, one for the countertop, and one for the secondary

To accomodate this, a 3-way zigbee relay module will receive inputs from momentary push buttons to control the main light circuits

(the secondary light circuit will have its own zigbee relay)

Adjacent concerns

• Washing machine (behind the corner): requires a new 16A socket. Probably worth a new phase wire
• Presence detector in the ceiling : requires wiring to some circuit (maybe lightning circuit would be relevant)

Links

• Airam recessed led spot lights : https://prod.airam.lamia.tech/media/catalog/downloads/76_FioFix_manual_paths_44W2024Y.pdf
• Etman products : ** springs ** 1 way switch
• Egant double socket flush. Tokmanni link

Surfaces

Paint

• Main beige color : Tikkurila Y456 Coconut

• behind kitchen sink and dishwasher : Biltema Waterproofing Membrane Wet Zone, Art. 36-8030

Tiling

• Floor : 30x60
• backsplash : 10x10 Island beige
• behind stoves : Novabell 60x60 mokka
